Solar Security Lighting Plans PDF | DIY Off-Grid Motion Light System | Solar Flood Lights

Light up your property with motion-sensing flood lights that run on sunshine. This guide covers a full lighting layout plan, real watt-hour math for sizing your panel and battery, and mounting four 12V motion flood lights.

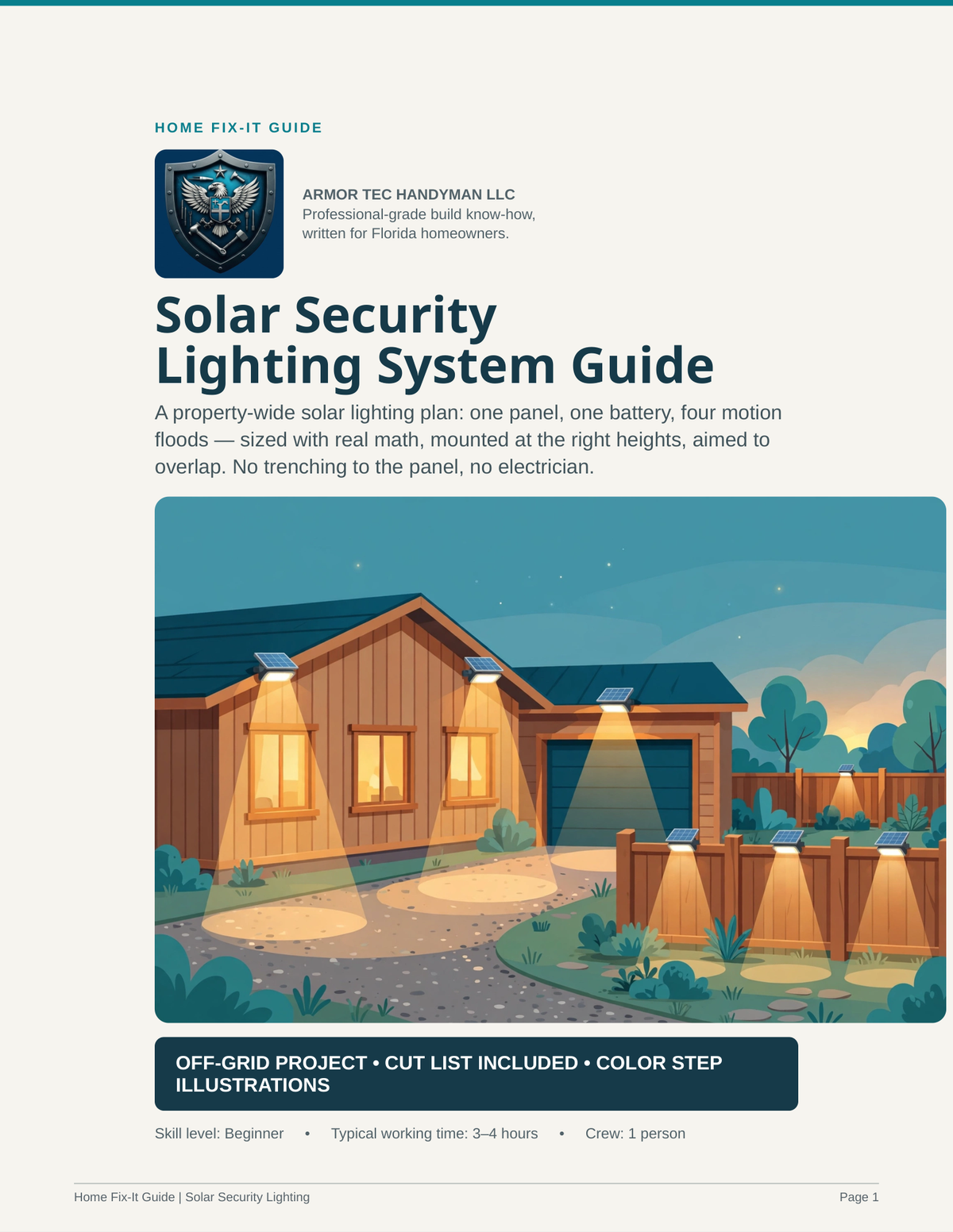

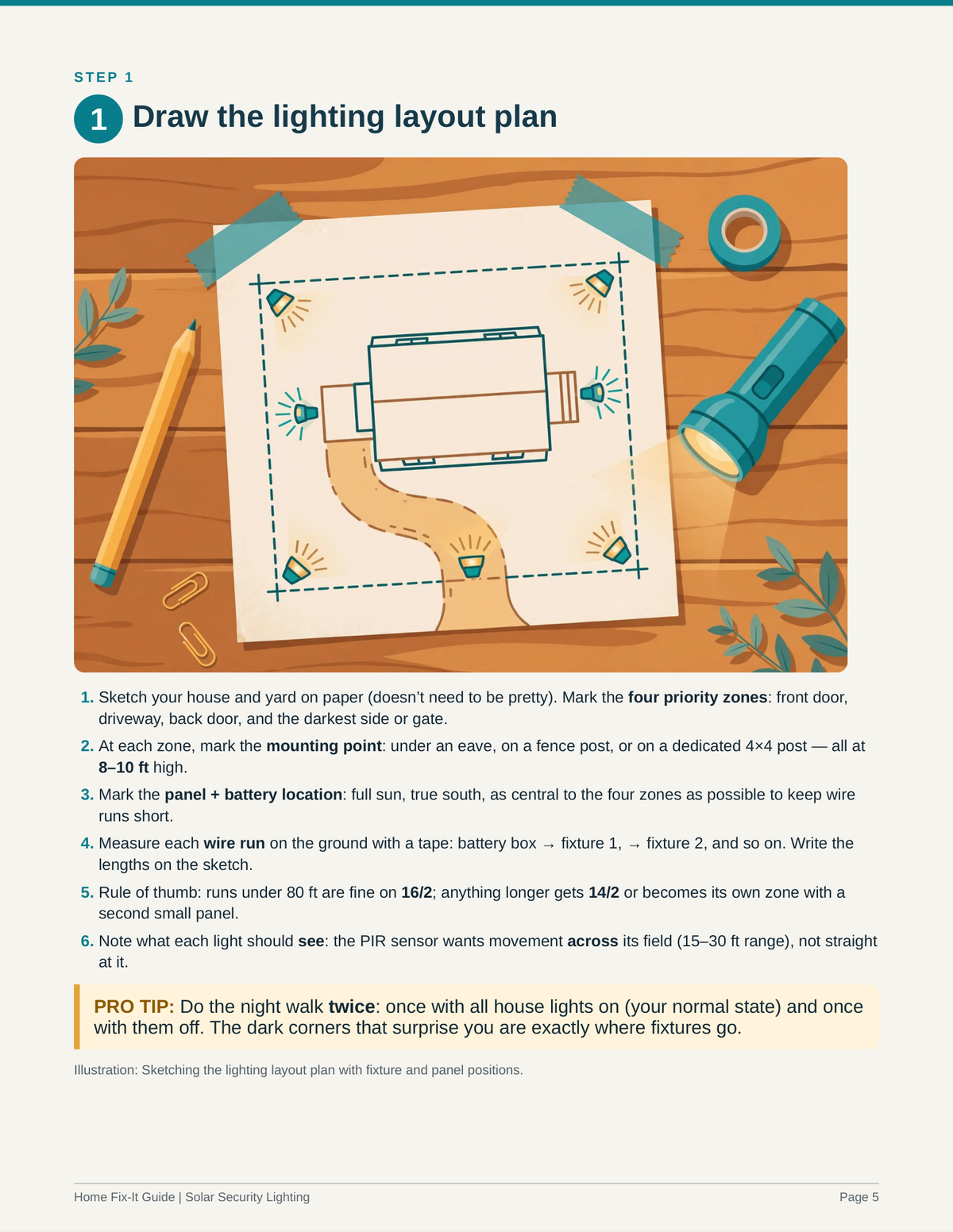

Inside this 10-page full-color PDF: a complete materials list and cut list, 4 illustrated step-by-step build steps (drawing your lighting layout, sizing the panel and battery with watt-hour math, mounting the panel, battery box, and controller, and wiring the four motion flood lights), pro tips, safety warnings, a troubleshooting section, and a final build checklist.

Skill level: beginner. Typical working time: 3–4 hours. Crew: 1 person.

This is a DIGITAL DOWNLOAD — no physical item will be shipped. You'll receive a full-color PDF instantly after purchase. For personal use only; not for resale or redistribution.
