Solar Well Pump Setup Plans PDF | DIY Off-Grid DC Pump Install | Solar Water Pump Guide

Pump water from a well or pond with no grid power and no fuel. This guide sets up a solar-direct DC submersible pump powered by two tilted 100W panels wired in 24V series — water flows whenever the sun shines.

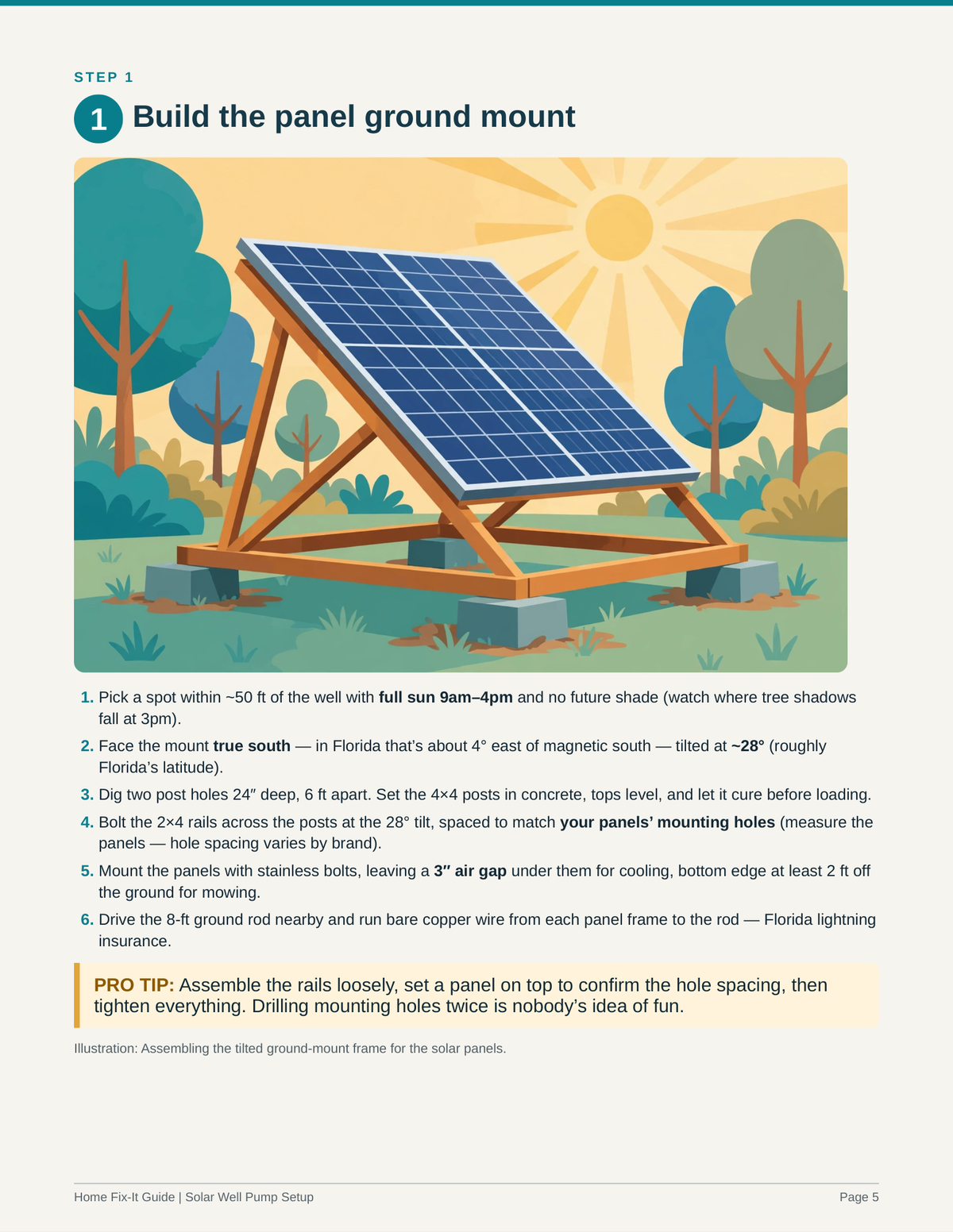

Inside this 10-page full-color PDF: a complete materials list and cut list, 4 illustrated step-by-step build steps (building the tilted ground mount for the panels, wiring panels to the pump controller in 24V series, dropping in the DC submersible pump, and trenching the discharge line to a storage tank), pro tips, safety warnings, a troubleshooting section, and a final build checklist.

Skill level: intermediate. Typical working time: 6–8 hours. Crew: 2 people.

This is a DIGITAL DOWNLOAD — no physical item will be shipped. You'll receive a full-color PDF instantly after purchase. For personal use only; not for resale or redistribution.
